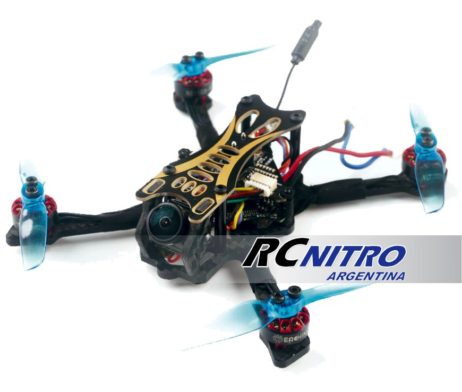

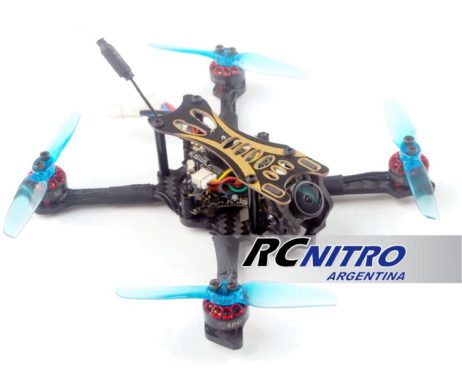

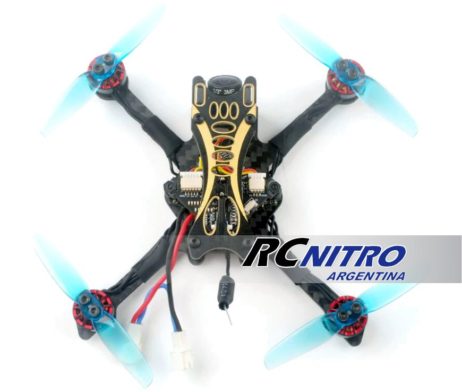

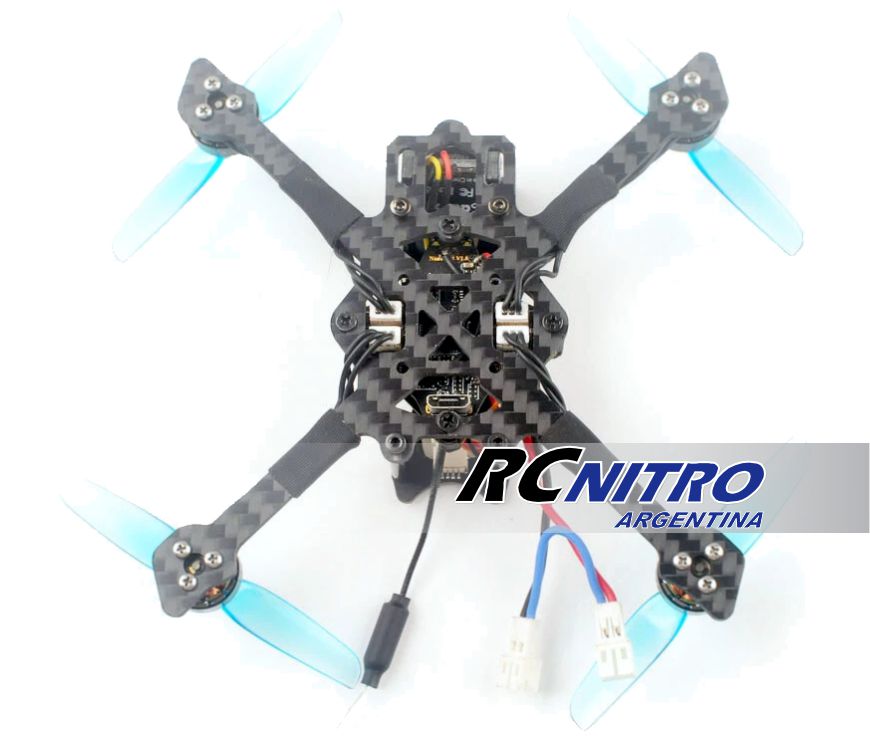

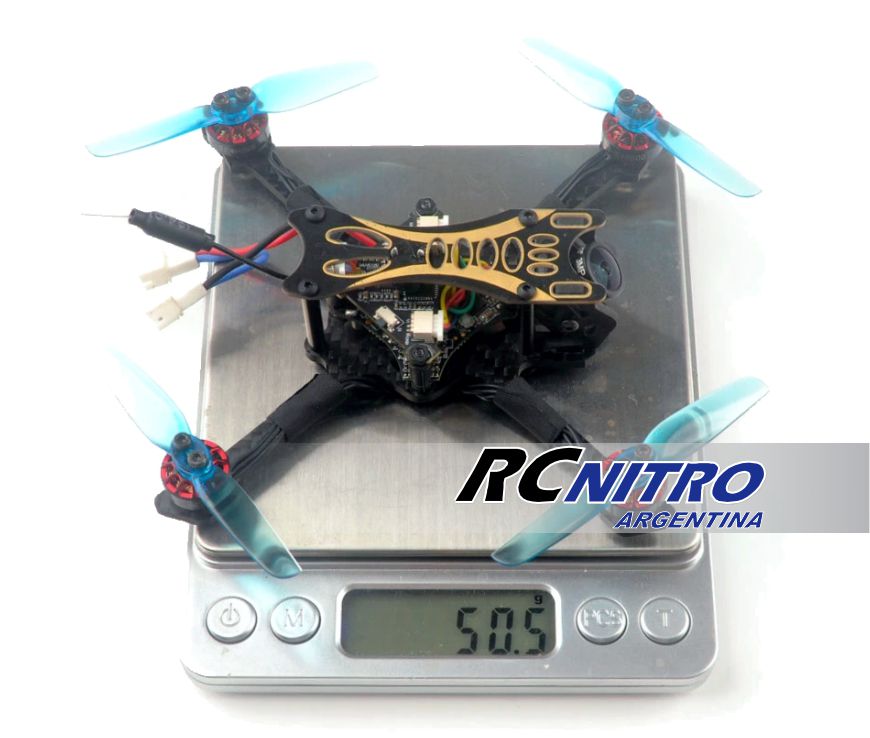

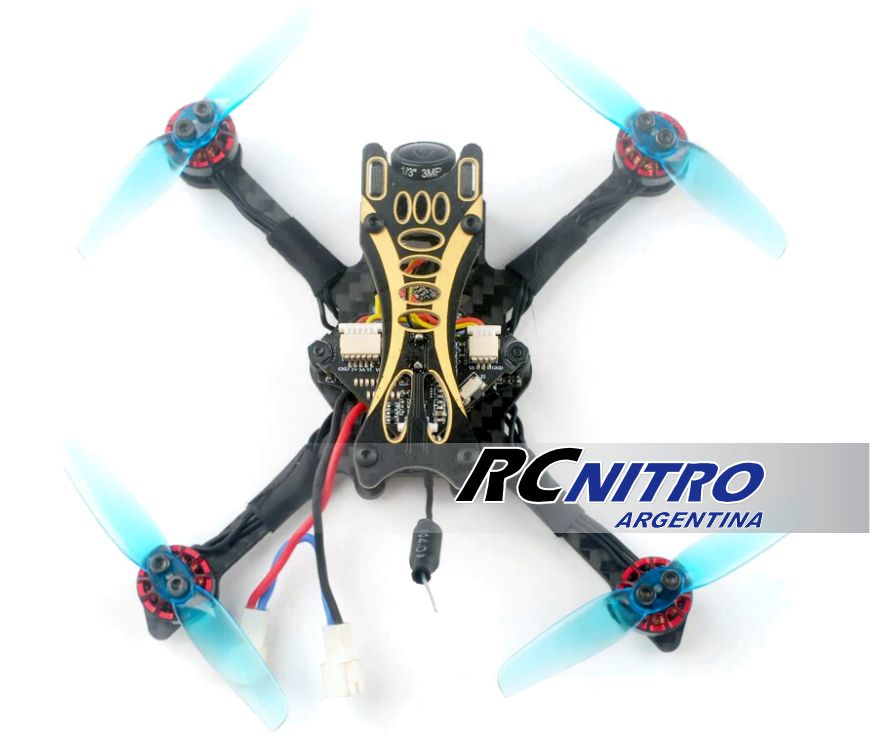

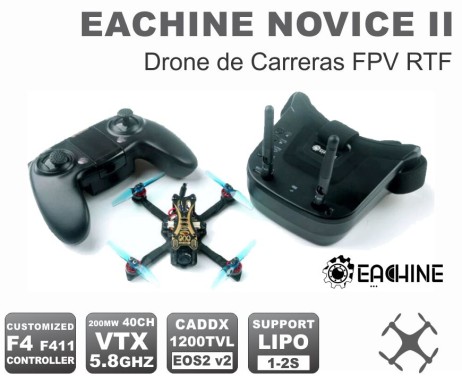

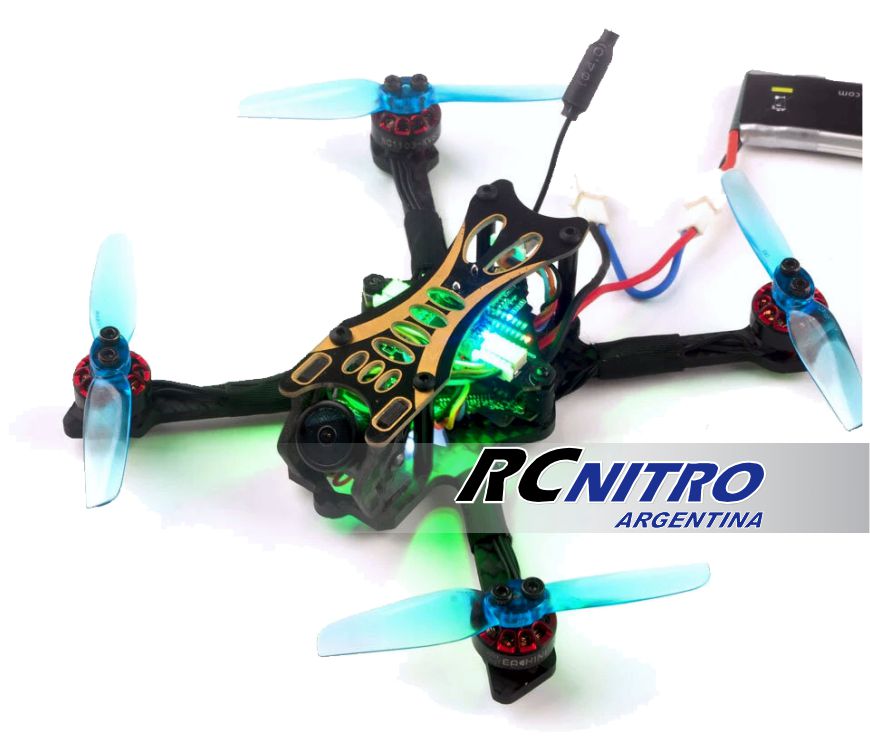

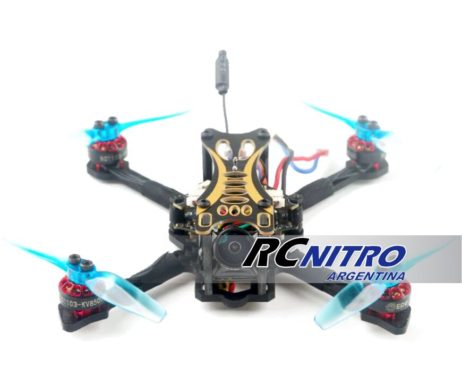

Eachine Novice II RTF

Nano X F4 pro flight controller
Powerful and smoothly

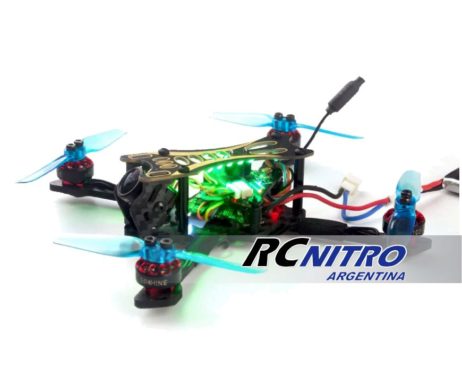

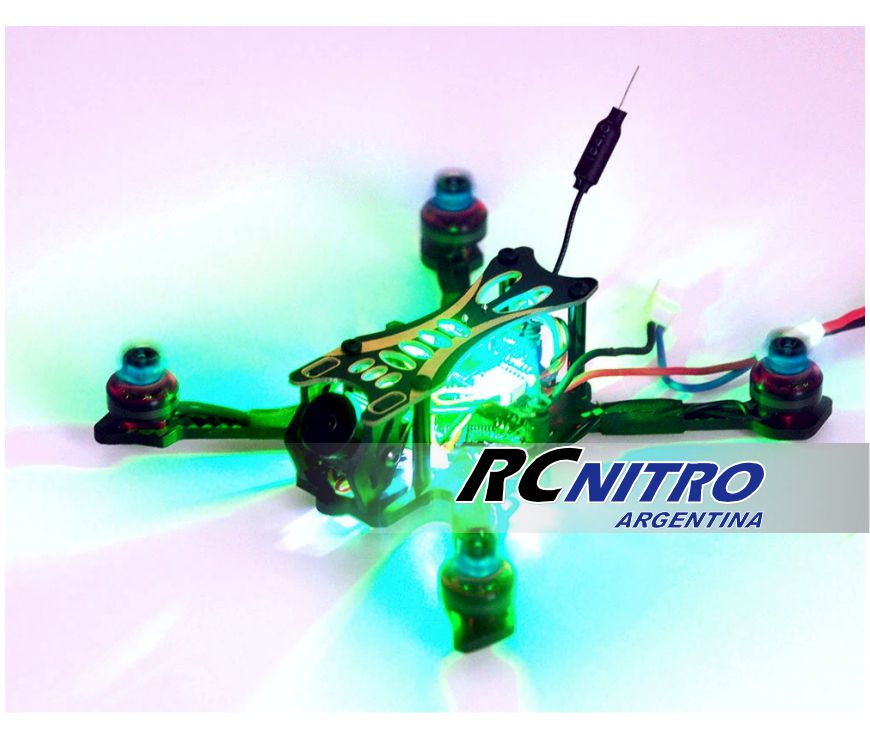

Led Strip ready
Built-in Buzzer
New design 1103 KV8500 motors
Camera Angle adjustable
VTX power switchable 25mw~200mw
Smartaudio ready , change VTX bands, powers, channels via OSD
Ready to fly
Compatible both for 1s-2s Lipo/LIHV

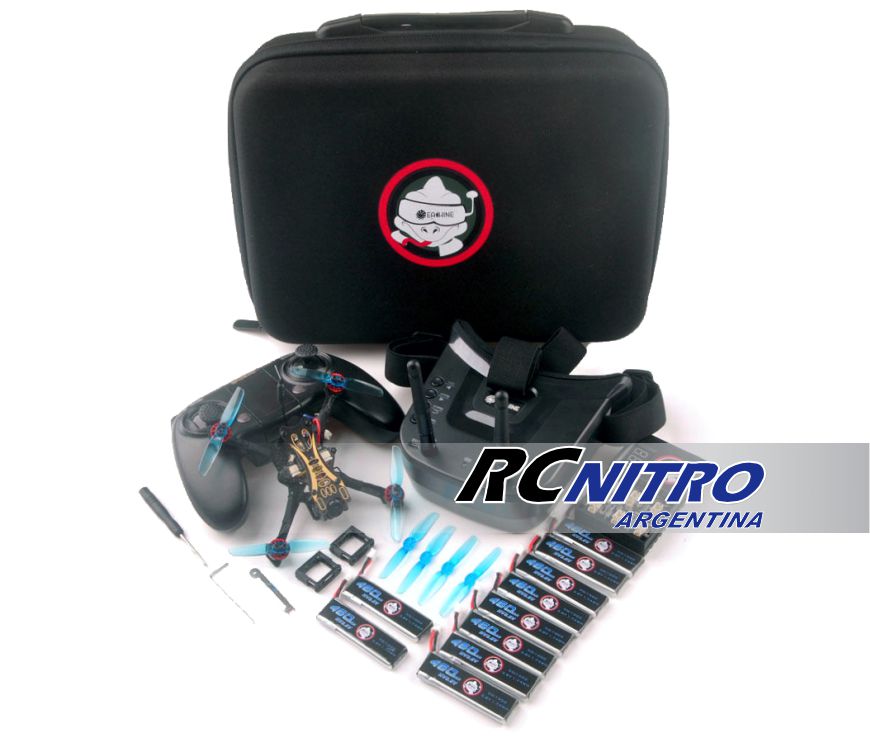

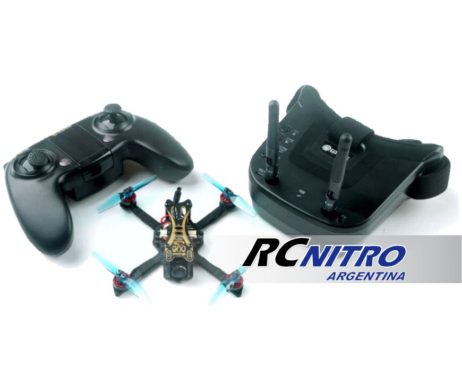

• EL KIT INCLUYE:
1 x 120mm Frame
1 x Nano X F4 Flight Controller
4 x Eachine NC1103 KV8500 Brushless Motor
2 x HQPROP T65 bi-blade Propeller (4cw + 4ccw)
1 x Caddx EOS2 v2 version 4:3 Camera
1 x 5.8g 25mw~200mw Switchable Whoop VTX
2 x 3.8v 460mAh Battery
1 x 6 In 1 6-way LIPO/LIHV ChargerR
1 x Eachine WT8 2.4G Radio Transmitter
1 x Eachine VR009 5.8G 40CH FPV Goggles
1 x Propeller Disassemble Tool
1 x Screwdriver
1 x Cargador de baterías USB (DIFERENTE AL QUE SE MUESTRA EN EL VIDEO)

- Motor:
Mode: EX1103
KV options: KV8500
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter: F1.5mm
Motor Dimension(Dia.*Len):F13.5mm*16mm
Weight(g):3.8g

- Flight controller:
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1-2S battery input (DC 3.5-8.7V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Frsky D8 SPI receiver
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 28A
Current meter scale set to 1175
Built-in 5V 1A BEC
Built-in voltage detection

- Onboard 4in1 ESC:
MCU upgraded to EFM8BB21
Power supply: 2-4S LiPo/LiPo HV (7v/17v)
Current: 5A continuous peak 6A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.HE
Default protocol: DSHOT600

- Internal Frsky NON-EU Receiver Version:
SPI BUS receiver
Frsky D8
Compatible Non EU transmitter both D8 mode
Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 200m

- Whoop VTX:
Output power: 25~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Antenna: RG178 antenna
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready
Weight:3g

- Caddx EOS2 v2 version:
1/3" CMOS Sensor
1200 TVL
2.1mm lens
4:3 Image size
NTSC
Global WDR
Internal Synchronization

- Lipo Battery:
Capacity:460mAh
Voltage:3.8v
Continuous Discharge Rate: 50C
Instantaneous discharge rate: 100C
Size: 60mmx18mmx7mm
Weight: 13.6g
Connector: PH2.0

- Radio Transmitter:
Model: WT8
Frequency:2.4Ghz
Frequency Hopping: Latest FHSS(64 points,3.6ms)
Channels: 6 channels
Mode 2 (Left Hand Throttle)
Resolution: 4096
Transmission: =100mw (20dbm)
Distance: >1000m (depends on actual situation)
Working Voltage:4.2-6v(AAA1.5v*4)
Working current: 100-150mA
Size:162*110*62MM

- VR009 FPV Goggles:
Small size and light weight;
Low power consumption, Working current 300~330mA;
Double antenna reception to make the signal more stable;
Race Band 40 channel, Auto-Searching;
3.0 Inch 480*320 dot high brightness LCD screen;
Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
Built-in 3.7V/1200mAh high-capacity Li-ion polymer Battery;
Universal USB charging interface;
Real-time video return, Very low time-delay;
Bilingual menu in support of Chinese and English
