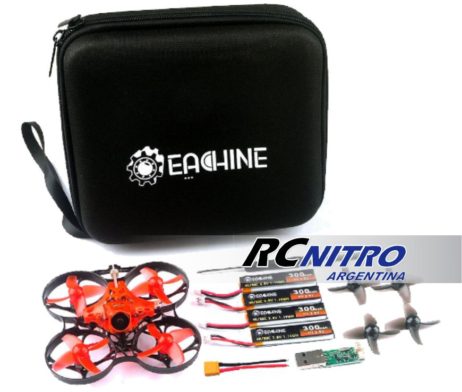

• El Kit incluye:

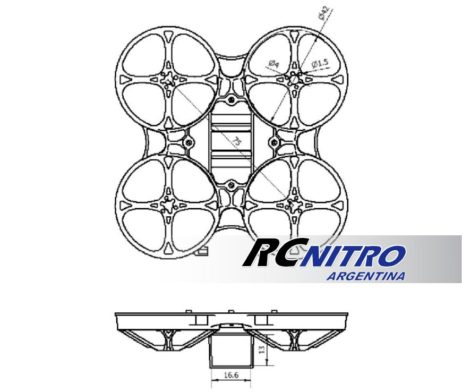

1 x 75mm Brushless Whoop Frame
1 x Crazybee F4 PRO FC no RX verion
4 x TC0803 KV15000 Motor
1 x 40mm propeller(4cw+4ccw)
1 x Caddx EOS2 camera
1 x 5.8G 40ch 25mw~200mw VTX
4 x 3.8v 300mah 40C/80C battery
1 x USB Lipo/LIHV Charger
1 x Propeller disassemble tool
1 x LED board
1 x Screwdriver
1 x XT30 wire
1 x Bag

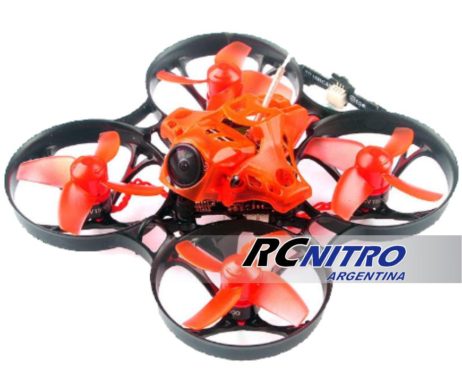

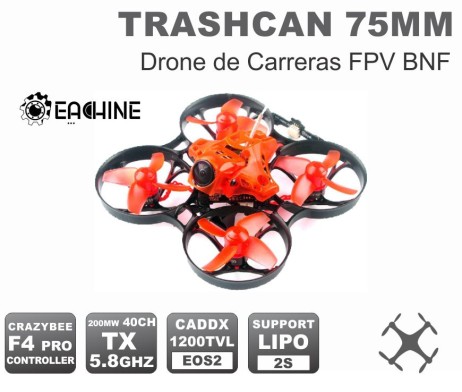

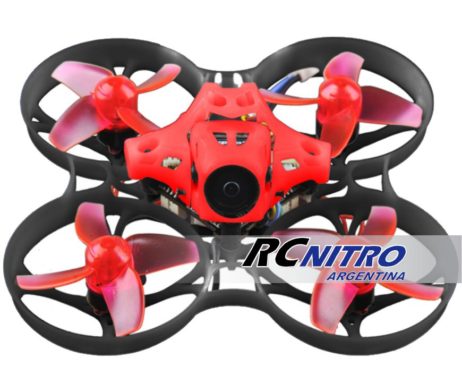

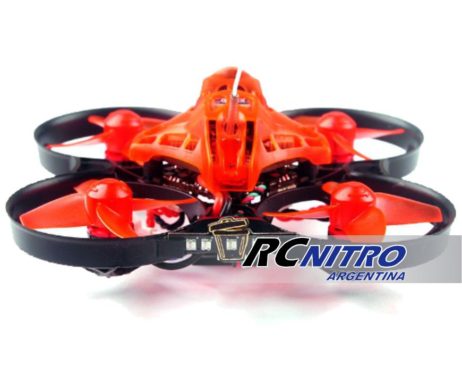

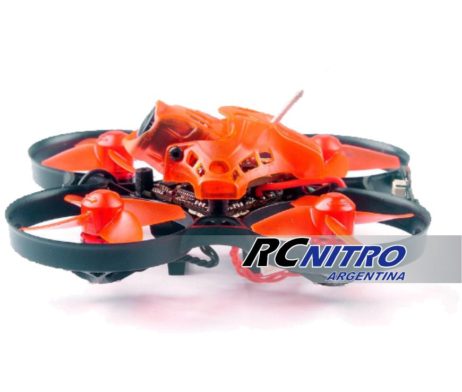

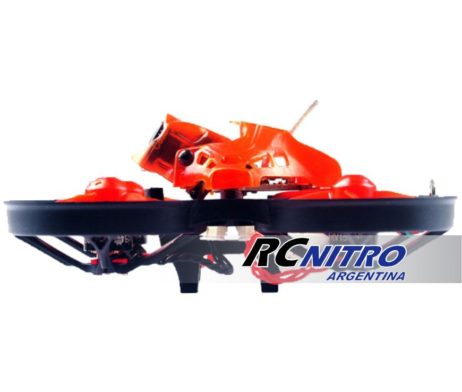

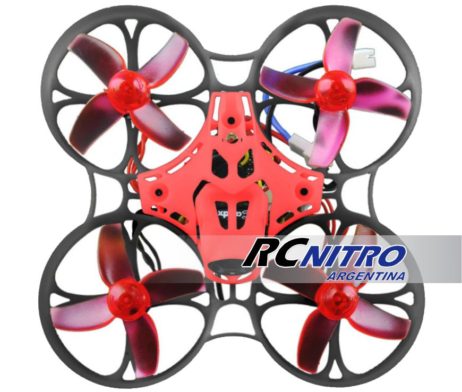

Eachine Trashcan 75mm BNF
New Crazybee F4 PRO Flight controller 1-2s Lipo Compatible.
2S whoop more powerful and more flight time.
Betaflight support , multi flight mode: ACRO/AIR/ANGLE.

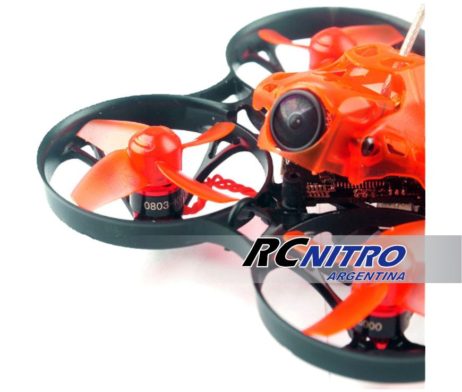

New 0803 Powerful and High efficiency Brushless motor and Smooth ESC. The motor power with 7V and 40mm propeller can get 55g pull. It is more powerful pull than 0802 49g.
Betaflight OSD support ,easy to get RSSI, Voltage ,current from your goggles(DSMX version no RSSI output).
Caddx EOS2 camera ready , More comfortable FPV experience.
Camera Angle adjustable (0-35°).
VTX power switchable 25mw~200mw.
Smart Audio ready , change VTX bands, powers, channels via OSD.
Adjust the settings and the PID of the flight controller via OSD.
Flysky version support both AFHDS and AFHDS-2A protocol transmitter.
Full telemetry function ready (Frsky Non-EU and Flysky version support).
Support buzzer.
LED_Strip Ready.
Compatible both for 1s-2s.
• Motor
Mode: TC0803 KV15000
Configu-ration: 9N12P
Stator Diamter: 8mm
Stator Length: 3mm
Shaft Diameter: F1mm
Motor Dimension(Dia.*Len): F10.5mm*14.5mm
Weight(g): 2.2g
No.of Cells(Lipo): 1S-2S

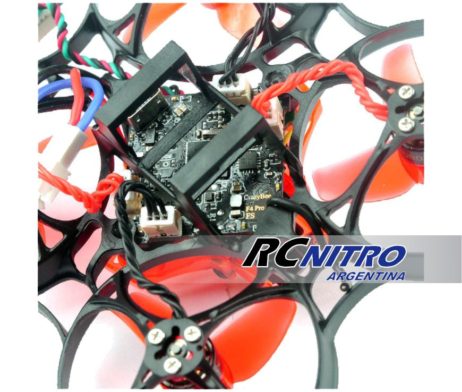

• Flight controller
(Flysky version) CRAZYBEEF4 PRO FS Firmware target: CrazybeeF4FS
MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1-2S battery input (DC 3.5-8.7V)
Built-in 6A(each) Blheli_S 4in1 ESC Dshot600 ready
Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS2A switchable)
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 28A
Current meter scale set to 1175
Built-in 5V 1A Buck / Boost with LC filter
Built-in voltage detection
BLHELI_S pass-through Ready

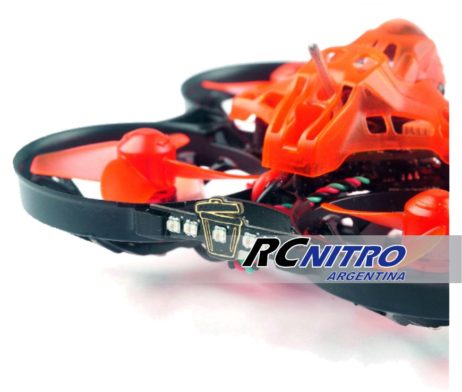

Taillight LED Ready
• Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1-2S LiPo/LiPo HV (3.5v/8.7v)
Current: 6A continuous peak 7A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.Hex
Default protocol: DSHOT600
• Flysky Receiver Version
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Failsafe support
• VTX
Output power: 25~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Antenna: RG178 antenna
Frequency: 5.8GHz 5bands 40 channels
With Raceband
Smart Audio ready
Weight: 3g

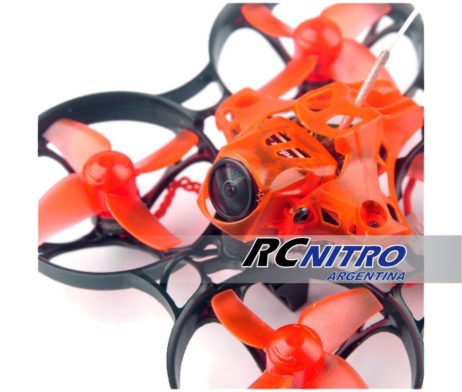

• CADDX EOS2 camera
1/3" CMOS Sensor
1200 TVL
2.1mm lens
16:9 Image size
NTSC
Global WDR
Internal Synchronization
• Lipo Battery
Capacity: 300mAh
Voltage: 3.8v
Continuous Discharge Rate: 40C
Instantaneous discharge rate: 80C
Size: 55mmx11.5mmx6.5mm
Weight: 7.8g
Connector: PH2.0
*Notes: Need 2pcs batteries for Series circuit
