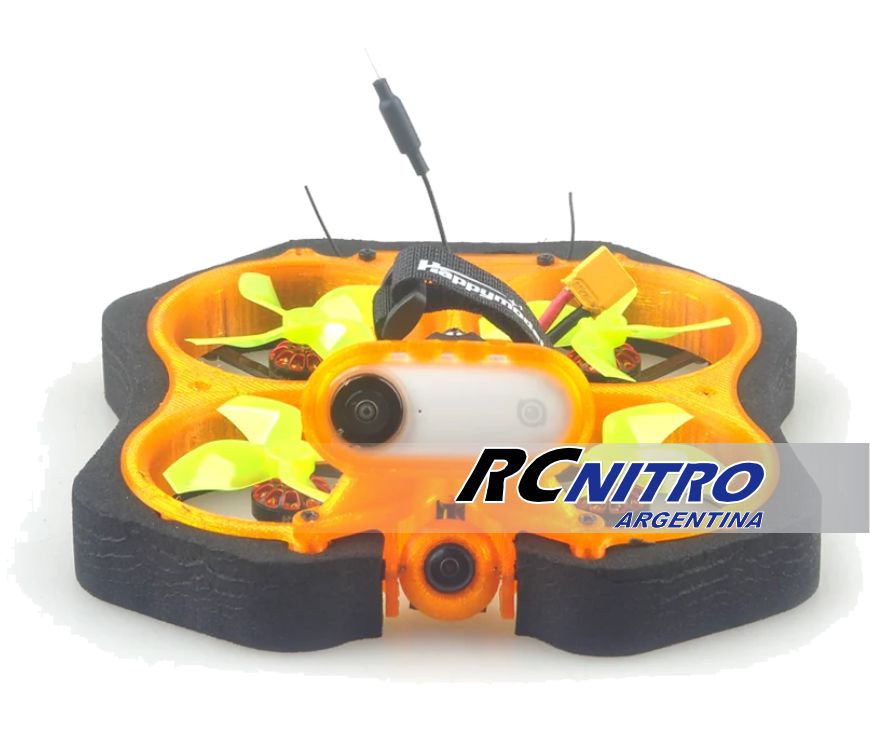

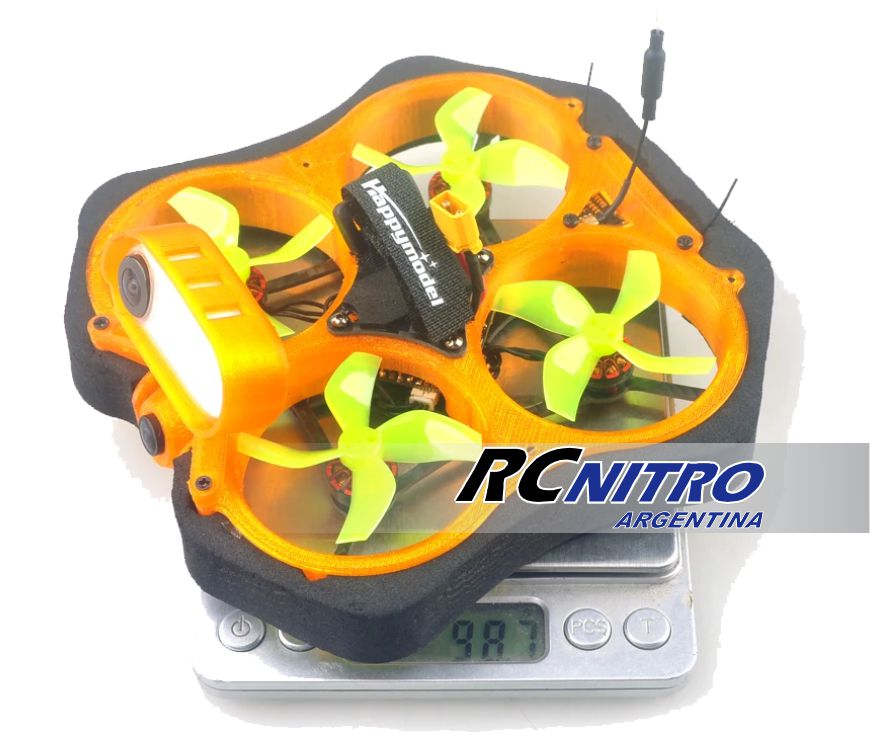

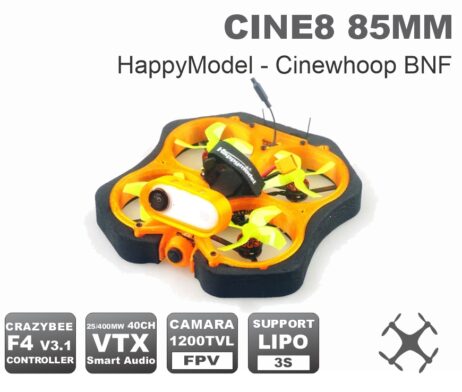

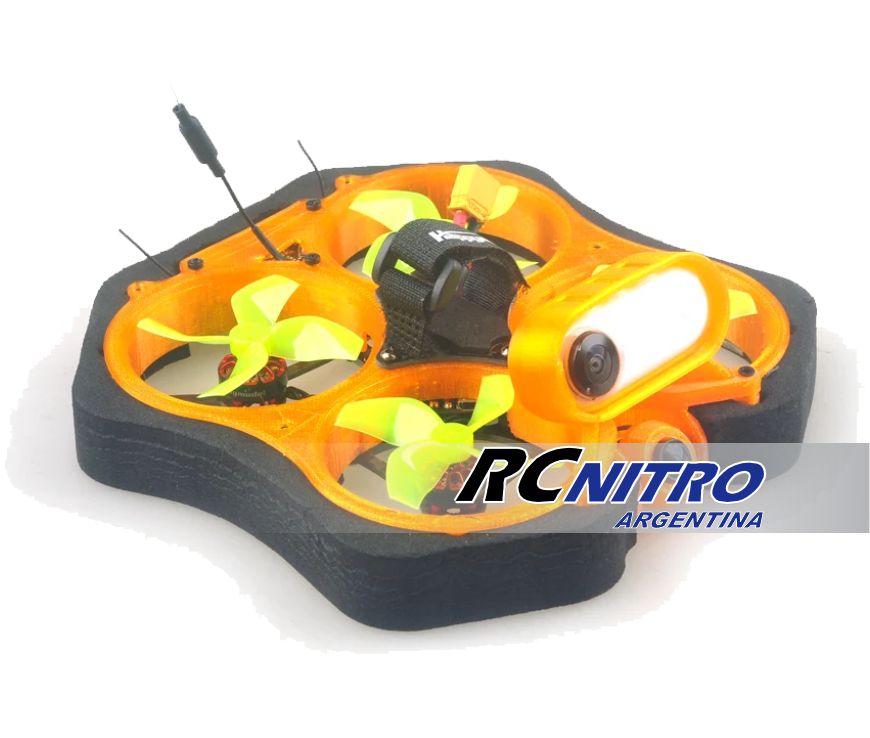

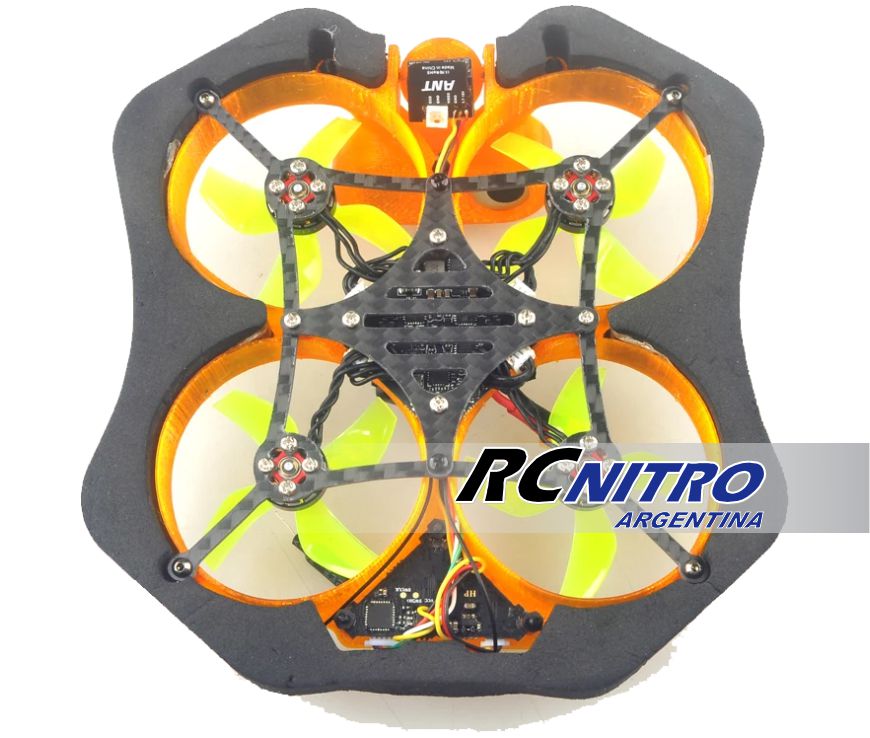

HappyModel CINE8 BNF

• Controladora de Vuelo:
CRAZYBEEF4 V3.1 FC
Firmware target: CrazybeeF4FR
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 2-4S battery input (DC 2.9V-8.7V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5V 1A BEC

• Variador de Velocidad ESC 12A 4 en 1 a bordo:
MCU upgraded to EFM8BB21
Power supply: 2-4S LiPo/LiPo HV (7v/17v)
Current: 12A continuous peak 15A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: F_H_40_REV16_8.HEX
Default protocol: DSHOT600

• Motores:
Mode: EX1202.5 KV8000
Configu-ration:9N12P
Stator Diamter:12mm
Stator Length:2.5mm
Shaft Diameter:F1.5mm
Motor Dimension(Dia.*Len):F14mm*14.5mm
Weight(g):4.4g
No.of Cells(Lipo):2-3S

• Transmisor de video VTX:
Output power: 25mw~400mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 400mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band
SmartAudio ready

• Cámara FPV:
Image Sensor: 1/3" CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC or PAL
IMAGE: 16:9 or 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio : >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm
Min. Illumination: 0.001Lux@F1.2
Auto Gain Control: YES
BLC: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm(with bracket to 19*19mm)
Wide Power Input: DC 3.7-18V
Work Temperature: -20?~+60?
Weight: 2g (N.W.)

• Receptor de Radio:
External Flysky Fli14+ RX version
Channel: 14
Protocol: AFHDS-2A
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Antenna Length: 50mm (single antenna)
Input Power: 4.0-6.5V DC
Weight: Only 1g
Size: 19.5mm*12mm*5mm
Color: Black
Signal Output: IBUS
RSSI Output: Channel14
No ground interference: >500m

• Hélices Gemfan D51(2020-4)
Material: PC
Weight: 0.91g
Pitch: 2in
Props Dia: 50.3mm
Center Thickness: 4.5mm
Center Hole Dia: 1.5mm 3 holes

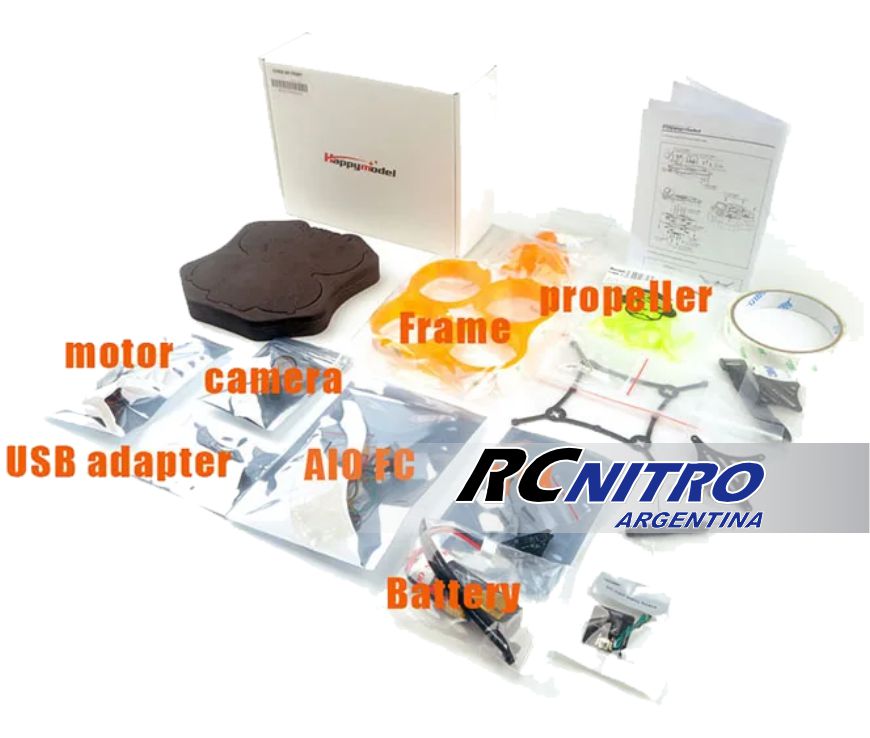

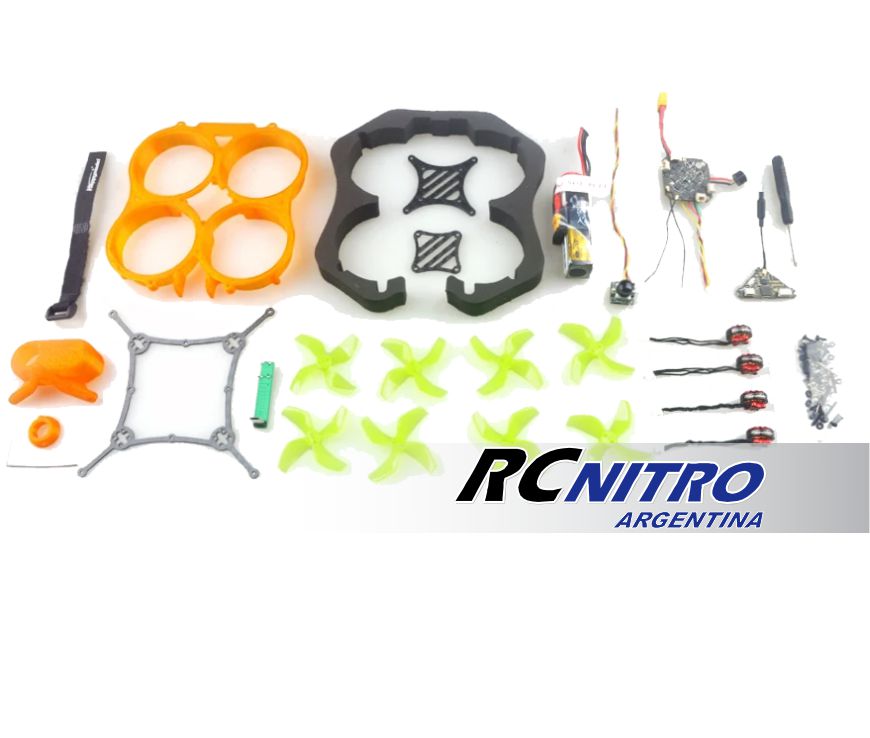

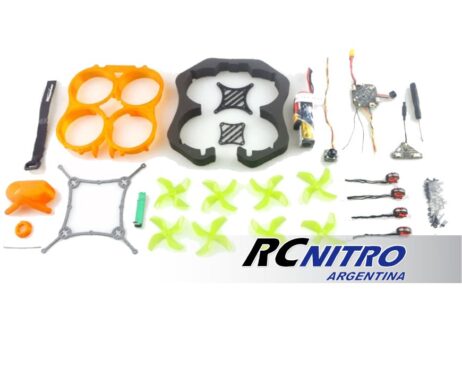

• EL KIT INCLUYE:
1x HappyModel CINE8 85mm Brushless Cinewhoop FPV DIY KIT Drone
2x Pares de hélices Gemfan D51(2020-4)
1x Batería Lipo 3s 11.1v 450mAh

• REQUIERE ACCESORIOS ADICIONALES:
- Equipo de Radio Control compatible con el protocolo FlySky
- Cargador de Batería Lipo 3s
- Gafas FPV en el caso de querer realizar vuelos en primera persona
