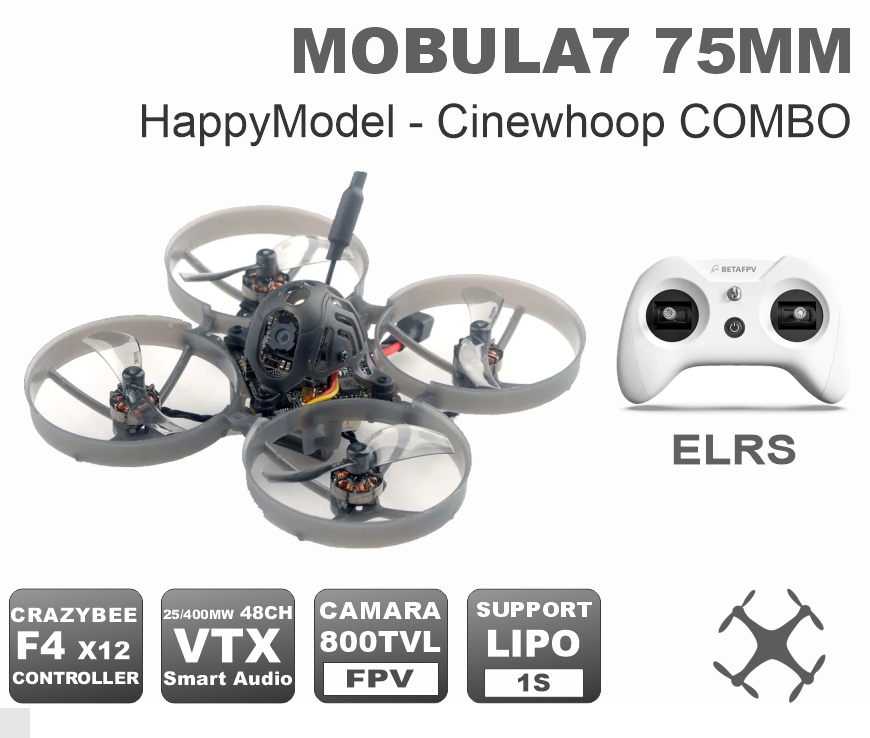

HappyModel MOBULA7 ELRS COMBO

• EL KIT INCLUYE:
1x MOBULA7 75mm Brushless Tinywhoop FPV Drone
1x Radio Control BetaFPV LiteRadio 3 ELRS
1x Batería Lipo 1s 3.8v 660mAh con cargador Lipo
2x Pares de hélices Gemfan 1610-2 2-Blade
1x 1S Parallel Charging Board
1x Propeller Disassemble Tool
1x Extra Camera Canopy

• REQUIERE ACCESORIOS ADICIONALES:
- Gafas FPV en el caso de querer realizar vuelos en primera persona

• Controladora de Vuelo:
X12 ELRS V2.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU6000 or ICM20689(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A
Built-in voltage detection
Built-in current sensor

• Variador de Velocidad ESC 12A 4 en 1 a bordo:
Power supply: 1S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: Z_H_30_REV16_7.HEX
Default protocol: DSHOT300
Support Bluejay firmware

• Motores:
Mode: RS0802 KV20000
Configu-ration: 9N12P
Stator Diamter: 8mm
Stator Length: 2mm
Shaft Diameter: F1.5mm
Motor Dimension(Dia.*Len): F10.5mm*13.5mm
Weight(g): 2.0g
No.of Cells(Lipo): 1S only

• Transmisor de video VTX:
Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw) • Cámara FPV: Model: RunCam Nano 3 Image Sensor: 1/3" CMOS Horizontal Resolution: 800TVL Lens: 2.1mm(M8) FOV 150° Signal System: NTSC S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power: DC 3-5.5V
Current: 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm

• Receptor de Radio:
Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna: SMD antenna
Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Compatible with ExpressLRS V2.0 TX Module Couldn't flash separately ExpressLRS firmware • Hélices Gemfan 1610-2 2-Blade Weight: 0.24g Material: PC Pitch:1 inchProps Dia: 40mm Center Thickness: 5mm Center Hole Dia: 1.5mm
