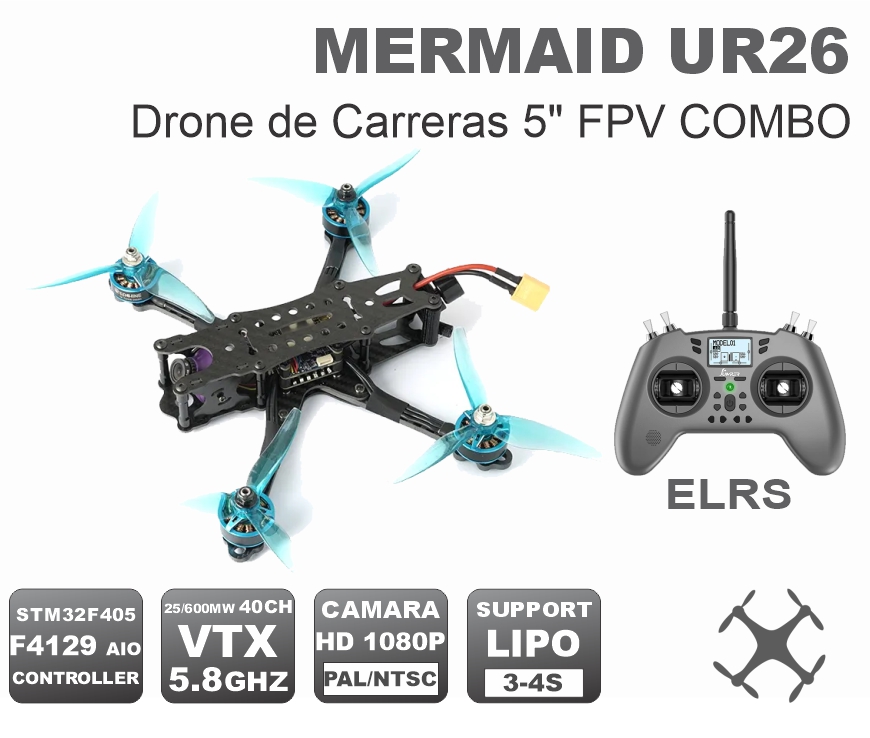

Mermaid UR26 5″ COMBO

• EL KIT INCLUYE:
1x TCMMRC Mermaid UR26 5" Freestyle PNP
1x Equipo de Radio Control Jumper T-Lite V2
1x Receptor ELRS BetaFPV NANO
1x Batería Lipo 4s 14.8v 1550mAh
1x Cargador Balanceador Lipo 4s
2x Pares de hélices 5145 3-Blade

• REQUIERE ACCESORIOS ADICIONALES:
- Gafas FPV en el caso de querer realizar vuelos en primera persona

• Controladora de Vuelo:
TCMMRC NVision F4129 V2
Main control chip: STM32F405
Gyroscope: 42688-P
Barometer: BMP280
Integrated OSD
Support PPM /DSM2/X / IBUS/ SBUS/ XBUS receiver
BEC: 10V 1.2A, 4.5V, 3.3V
Input voltage: 2s-6s Lipo
BlackBox: Yes
Barometer: Yes
Buzzer interface:YES
Mounting holes distance: 30.5mm x 30.5mm
Supports Betaflight Firmware MATEKF405

• Variador de Velocidad ESC E50129 60A 4 en 1 a bordo:
Constant current: 50A
Peak current: 60A (8S)
Input voltage: 2-6 S Lipo
MCU: EFM8BB21F16G (48MHz)
MOS Tube: Toshiba 5×6
BEC ouput: 5V 2A
Firmware: BL_S
Protocol: DSHOT600
PCB Size: 42*41 mm
Mounting Hole: M3*30.5*30.5 mm
Weight: 10.8 g

• Motores:
Marca: RaceStar
2207-2400kv 3s-4s Brushless Motor
KV: 2400kv
Lipo cell: 3s-4s

• Transmisor de video VTX XF5804 Pro V2.1
Transmitting power: 25mW/100mW/200mW/600mW switchable
Channel: 48CH
Full video format: NTSC/PAL
Input voltage: 7V~24V
Size: 36mm x 36mm x 5mm
Weight: 6g (except antenna)
Mounting holes distance: 30.5mm x 30.5mm

• Cámara FPV:
Resolution: HD 1080p
Image Sensor: 1/3" CMOS
Input: DC 5-30V
TV System: PAL/NTSC
Dimensions: 19mm x 19mm x 19mm

• Hélices:
Modelo: 5145 3-Blade Propeller
Material: PC
Mounting hole: 5mm
Quantity: 2 pairs
Color: Aleatorio
