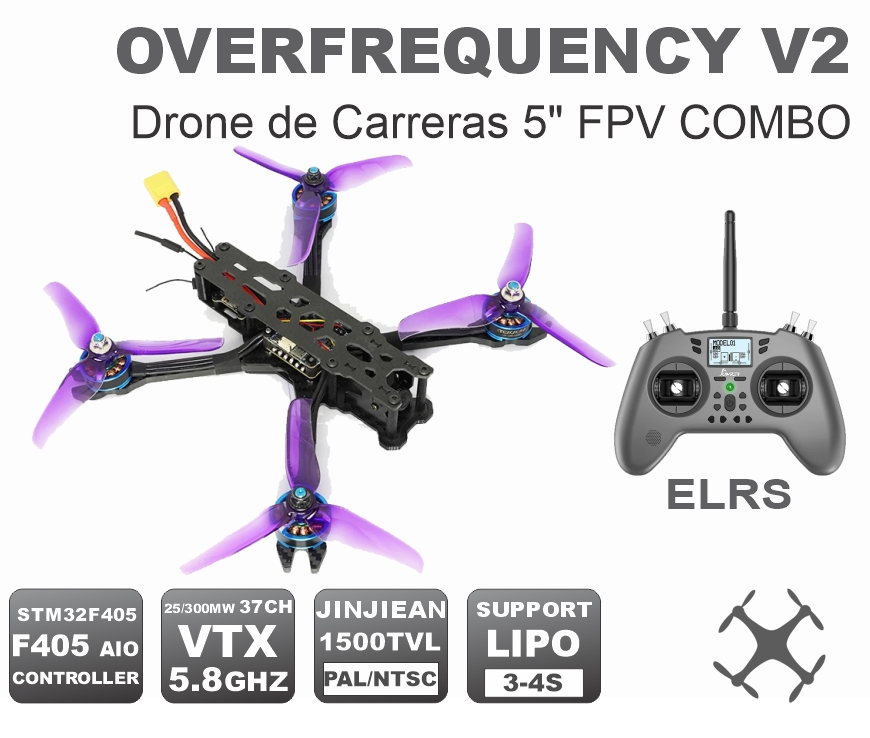

Overfrequency V2 5″ COMBO

• EL KIT INCLUYE:
1x Drone TCMMRC Overfrequency V2 5" Freestyle PNP
1x Equipo de Radio Control Jumper T-Lite V2
1x Receptor ELRS BetaFPV NANO
1x Batería Lipo 4s 14.8v 1550mAh
1x Cargador Balanceador Lipo 4s
2x Pares de hélices GEMFAN 51466 3-Blade Propeller

• REQUIERE ACCESORIOS ADICIONALES:
- Gafas FPV en el caso de querer realizar vuelos en primera persona

• Controladora de Vuelo:
Omnibus F4 V3 SD Flight Controller
Main control chip: STM32F405
Sensor: MPU6000 or ICM20689
Integrated OSD
Mounting holes distance: 30.5mm x 30.5mm
Supports Betaflight Firmware

• Variador de Velocidad ESC 30A 4 en 1 a bordo:
X220S 4 IN 1 30A BLHeli_S ESC ver 3.1
Input voltage: 2s-6s LiPo
Continuous current: 30A
Peak current:35A (10S)
BEC output: 5V
Firmware upgrade: Supports Dshot600/Oneshot125
Mounting holes distance: 30.5mm x 30.5mm

• Motores:
2205-2300kv 3s-4s Brushless Motor
KV: 2300kv
Lipo cell: 3s-4s

• Transmisor de video VTX XF5805 V6.1
Transmitting power: 25mW/100mW/200mW/300mW switchable
Channel: 37CH
Full video format: NTSC/PAL
Input voltage: 7V~26V
Power dissipation: 12V/180mA@200mW
Size: 35mm x 35mm x 5mm
Weight: 3g (except antenna)
Mounting holes distance: 20mm x 20mm

• Cámara JINJIEAN A19:
Model: A19
Resolution: 1500TVL
Image Sensor: 1/3" CMOS D1960H Sensor
Input: DC 5-30V
TV System: PAL/NTSC
OSD: Internal adjustable
Dimensions: 19mm x 19mm x 19mm

• Hélices:
Marca: GEMFAN
Modelo: 51466 3-Blade Propeller
Material: PC
Mounting hole: 5mm
Quantity: 2 pairs
Color: Aleatorio
