• EL KIT INCLUYE:
1 x Equipo de Radio Control Flysky i6x
1 x Receptor Flysky A8S
1 x Gafas FPV Eachine EV800
1 x Batería Lipo 4s 14.8v 1300mAh
1 x Cargador Balanceador Lipo 4s
1 x CLOUD-149HD frame kit
2 x 1407 4000KV Motor CW
2 x 1407 4000KV Motor CCW
1 x 20A BLHELI_S 4 in 1 ESC
1 x Mini F4 Flight Controller
1 x CADDX Turbo EOS 2 Camera
1 x 5.8G 40CH 25MW 200mw 500MW switchable VTX
2 x 3045 3-blade propeller CW
2 x 3045 3-blade propeller CCW
1 x 30°Camera Mount
1 x Battery Strap
1 x Circularly Polarized Antenna
(no incluye soporte para cámara deportiva)

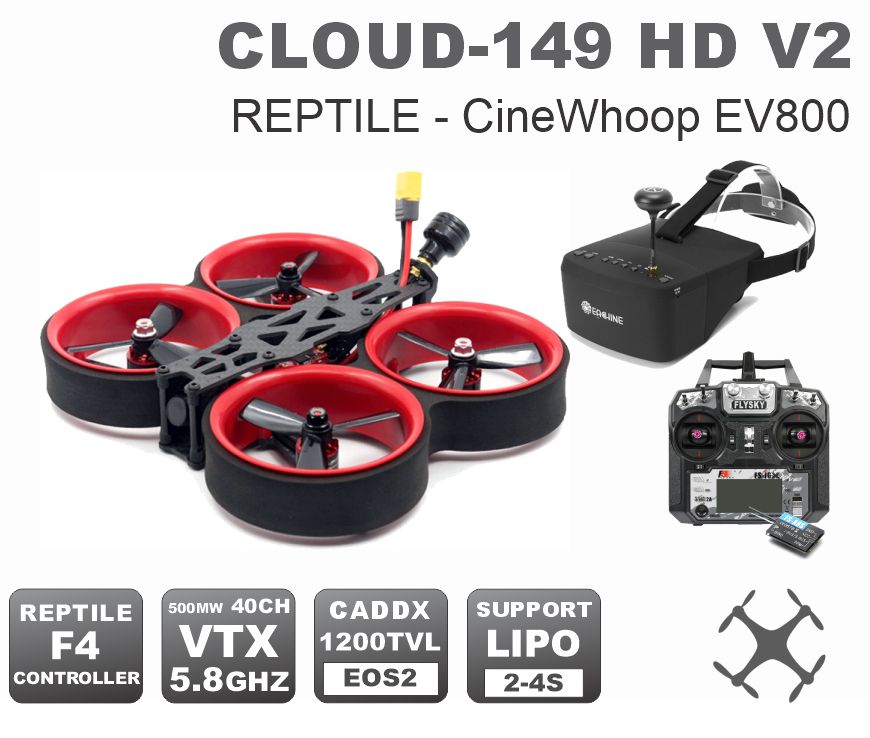

Reptile Cloud-149 HD V2 EV800
Reptile CLOUD-149 HD 149mm CineWhoop PNP
• MEJORAS DE LA VERSIÓN ANTERIOR:
Suitable for DJI FPV transmitter
Beautifully designed,rugged and durable
High quality carbon plate,precision cutting
Including DJI video transmitter mount (3D printing)
Thick aluminum column to ensure frame strength
Propeller out of sight
• CARACTERÍSTICAS:
No Props or frame in view
High performance SucceX-E mini F4 FC + 35A BLHeli_S 4 in 1 ESC + 300mW VTX
T700 Quality Carbon (40% more tensile strength compared to common 3K carbon)
Lightweight one-piece frame design (Less flexibility, more Rigid, more Durable)
Low Resonance frame construction (Less Jello, more Cinematic)
Butter smooth XING-C 1408 3600KV motors
Bumper prop guards to protect the sensitive environment or yourself
Pre-tuned with smooth freestyle settings
- CLOUD-149HD Frame Kit
Wheelbase: 149mm
Upper Plate Length: 156mm
Bottom Plate Length: 156mm
Upper Plate Thickness: 2mm
Bottom Plate Thickness: 2mm
Arm Plate Thickness: 3mm
Position of FC installation hole: 20*20mm/30.5*30.5mm
Camera mounting hole distance: 20mm
Distance of installation hole of motor:12mm
Plastic parts: ABS material plastic Diversion ring
Printed parts: TPU antenna base
- Mini F4 OSD Flight Controller
Brand Name: Reptile
Item Name: 20x20mm F4 OSD 2-4S Flight Controller Integrated with BEC Black Box
Input Voltage: 2-4S Lipo
OSD: Betaflight OSD
Firmware: Betaflight 3.20 SD
BEC: 5V 2A
Support BLheliSuite Parameter adjustment
Support Voltage Detection
Support PPM/SBUS/IBUS/DSM2 Receiver
(SBUS: RX1; IBUS&DSM2: RX6 Need short F4 Front IBUS Pad)
Size: 27x25mm
Mounting Hole: 20x20mm
Weight: 3.3g
- 20A BLheli_S 2-4S 4in1 ESC
Brand Name: Reptile
Item Name: 20x20mm 20A BLheli_S 2-4S 4in1 Brushless ESC
Input voltage: 2-4s lipo / 2-4s HV Lipo
BEC output: None
Continuous working current of single electric regulator: 15A (maximum current: 20a, 5S) 20A (maximum current: 25A, 5S)
Firmware: BLHELI_S
Support DSHOT,Oneshot, forward and reverse
Processor: SILABS EFM8BB21F16G
MOS tube: TPN2R703NL
Driver: a new generation of three in one MOS driver
Size: 27 * 31mm (including the maximum size of pad and protruding point)
Weight: 3.7g
- 1407 4000KV Motor
Brand Name: Reptile
Item Name: 1407 4000KV 2-3S Brushless Motor
Input Voltage: 2-3S Lipo
Confi-guration: 9N12P
KV: 4000KV
Shaft Diameter: M5
Quantity: 2 CW & 2 CCW
Diameter: 18.6mm
Length: 29.7mm
Weight: 15g
Max. Thrust: 400g
Prop Adapter Shaft Thread: M2
- 3045 3x4.5 3-Blade Propeller
Item Name: 3045 3x4.5 3 Inch 3-Blade Propeller
Color: Purple
Quantity: 2 CW & 2 CCW
- 5.8G 40CH 25/200/500mW Switchable VTX
Brand Name: Reptile
Working Voltage: 5-24V
Channel: 40CH
Power: 25mW/ 200mW /500mW Switchable
- CADDX Turbo EOS2 1200TVL FPV Camera
Brand Name: CADDX
Model: Turbo EOS2
Item Name: 1200TVL 1/3 CMOS 2.1mm Lens 4:3 FPV Camera
TV System: PLA
Dimension: 14x14x16mm
Along with a Rubber Camera Mount for installing 20mm width FPV Camera
